Georg Schlegel GmbH & Co. KG

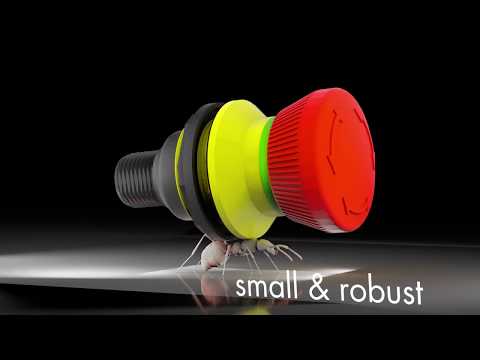

Shortron connect – small & robust

all about automation Hamburg 2025

Produkt teilen:

LinkedIn
Facebook
Twitter
WhatsApp

Beschreibung

Quick and simple:

Beside the costs, time also plays an important role in the planning of projects. SHORTRON connect with direct M12 connection enables a simple, fast and, above all, safe installation of the pushbuttons and switches, because the M12 connection technology is designed in such a way that a reverse or incorrect polarity of the connections is not possible – based on the plug & work principle: plug in and start. In addition, no separate contact element is being needed as it already is integrated in the switch.

Completely protected:

For the use of SHORTRON connect, an expensive and time-consuming installation of an enclosure is no longer necessary as the IP65 / IP67 protection degree provides a reliable protection against water and dust, in the front as well as on the rear. This principle not only saves costs but also space, especially if the ergonomic SHORTRON connect mounting brackets are being used. They are designed for a simple and quick assembly on 40 mm profiles. By means of the 90° mounting bracket for vertical mounting, as well as the 135° mounting bracket for horizontal mounting, the pushbuttons and switches can be placed and organised as per customer’s requirement. Also existing workstations can be expanded in the simplest way. For this purpose mounting brackets in three different versions with 1, 2 or 3 holes are available.

Small with design:

With a mounting depth of only 33.7 mm (emergency stop 26.7 mm), SHORTRON connect also has the typical compact design of the product family and is therefore ideally suitable for the use in machines, panels and operating units that are increasingly becoming smaller. It has also been taken care to maintain the familiar flat and attractive design of the series, so in addition to the silver-coloured and black front rings also the exclusive version with stainless steel front ring is available.
